Intelligent interior wall defect detection equipment

JCR-ID01

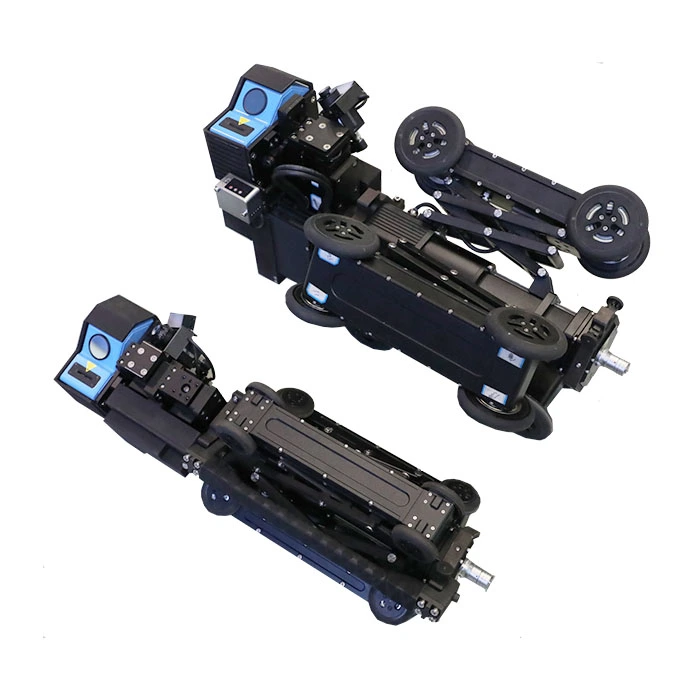

1. product picture

2. product use

The JCR-ID01 intelligent internal wall defect detection system can autonomously navigate through various types of hydraulic cylinders to perform non-contact inspection for internal wall defects.

l Full automation for 2D and 3D structure inspection

l Portable, flexible, and mobile

l Suitable for all types of cylinders

3. How it works

The JCR-ID01 intelligent internal wall defect detection system employs a 2D-camera and 3D-camera coupling technology to capture color, texture, and other surface characteristics of hydraulic cylinder interiors. It simultaneously constructs a 3D model of the cylinder's inner surface to obtain depth information. By integrating the strengths of both camera types with advanced image processing algorithms and data analysis techniques, the system achieves comprehensive, precise, and automated inspection of various internal wall defects in hydraulic cylinders.

4. Product Advantages

l No contact, no interference

l Flexible and portable

l Suitable for all types of cylinder inner walls

5. Related technical indicators

① Equipment detection content: defect location, size, depth information;

② The device can measure the range: diameter φ200 mm-φ700 mm, length ≤3 m;

③ Minimum equipment defect detection: 0.5*0.5 mm;

④ Equipment depth detection accuracy: 0.05mm;

⑤ Display detection results in real time, provide quantitative data, and form data reports.

⑥ Can be transferred to the company's existing data management system.
