LDRF510C-Laser cladding head

LDRF510C-Laser cladding head

​​​​​​​

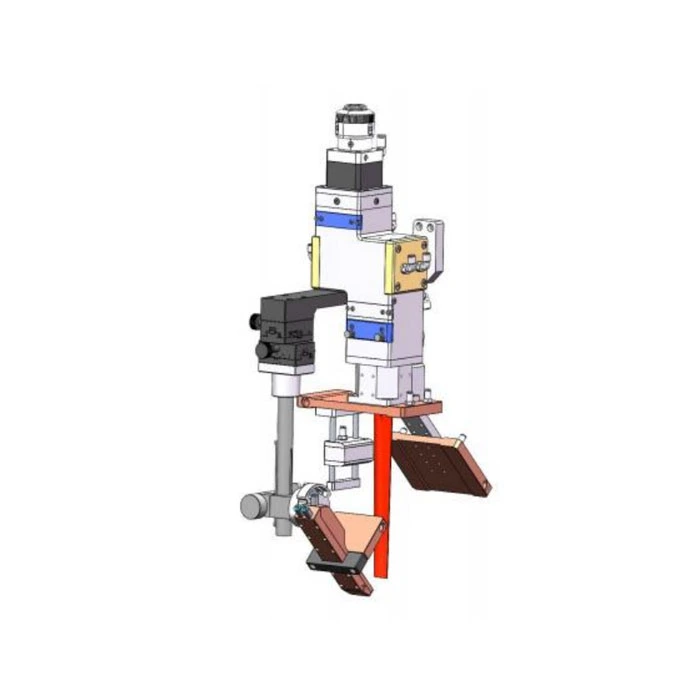

The LDRF510C is a medium-to-high power laser cladding head featuring an internally routed optical path with a direct water-cooled copper mirror. During operation, the circulating water system directly cools the copper mirror, maintaining a stable temperature for the mirror and ensuring continuous, stable performance of the LDRF510C laser cladding head. By selecting different optical configurations and nozzle arrangements, various cladding effects can be achieved during processing.

characteristic

• The applicable power range is ≤8KW, and the applicable wavelength range is 900~ 1100nm

• The direct water cooling of the copper mirror and the unique water path optimization design effectively control the operating temperature of the cladding head, ensuring its stability during use

• The product features high modularity, enabling different cladding applications by replacing components

• The multi-lens protection design effectively safeguards the safety of critical components, preventing operational issues caused by improper handling.

technical parameter
