LDRF510B-Laser cladding head

LDRF510B-Laser cladding head

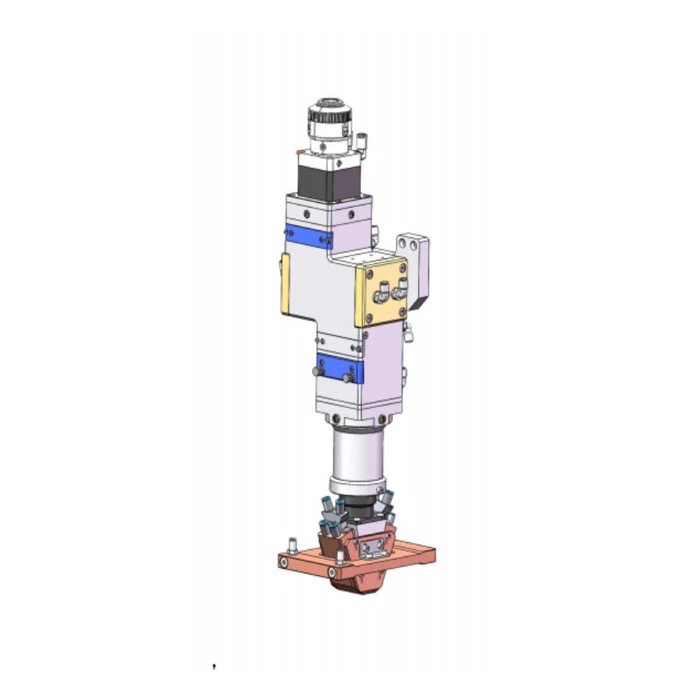

The LDRF510B is a medium-to-high power laser cladding head.The product's internal optical path is designed with a direct water-cooled copper mirror. During operation, the circulating water directly cools the mirror, effectively maintaining a constant temperature for the lens. This ensures the LDRF510B laser cladding head can run continuously and stably during processing. By selecting different optical configurations and nozzle arrangements, various cladding effects can be achieved.

characteristic

· The applicable power range is ≤8KW, and the applicable wavelength range is 900~1100nm

· The direct water cooling of the copper mirror and the unique water path optimization design effectively control the use temperature of the cladding head and ensure the stability of the cladding head during use

· The product features high modularity, enabling diverse cladding applications through component replacement

· Multi-lens protection design effectively protects the safety of key components in use

technical parameter
