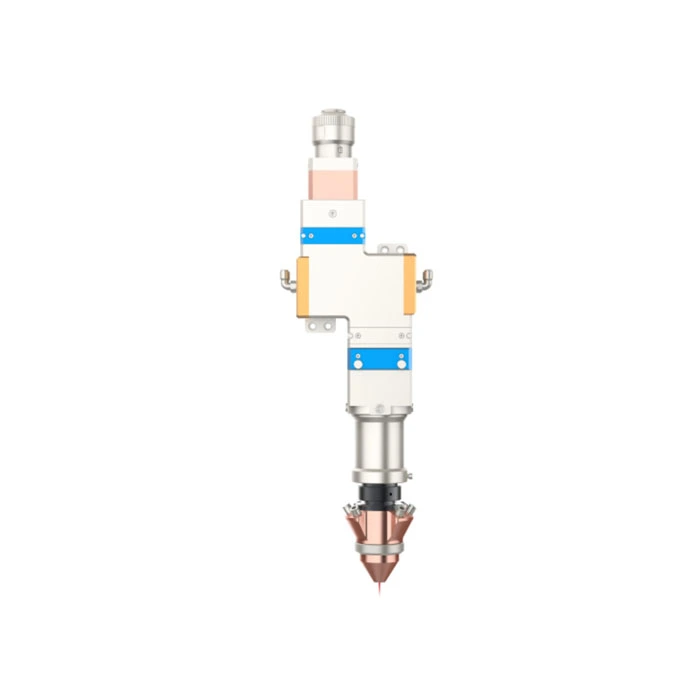

LDRF510A-Laser cladding head

LDRF510A-Laser cladding head

The LDRF510A is a medium-to-high power laser cladding head featuring an internally routed optical path with a direct water-cooled copper mirror. During operation, the circulating water directly cools the mirror, maintaining a constant temperature and ensuring stable performance throughout processing. By selecting different optical configurations and nozzle arrangements, the system can achieve various cladding effects.

characteristic

• The applicable power range is ≤8KW, and the applicable wavelength range is 900~ 1100nm

• The direct water cooling of the copper mirror and the unique water path optimization design effectively control the operating temperature of the cladding head, ensuring its stability during use

• The product features high modularity, enabling different cladding applications by replacing components

• The multi-lens protection design effectively safeguards the safety of critical components, preventing operational issues caused by improper handling.

technical parameter
