LDRF-TK-20KA-Laser cladding head

Product Description

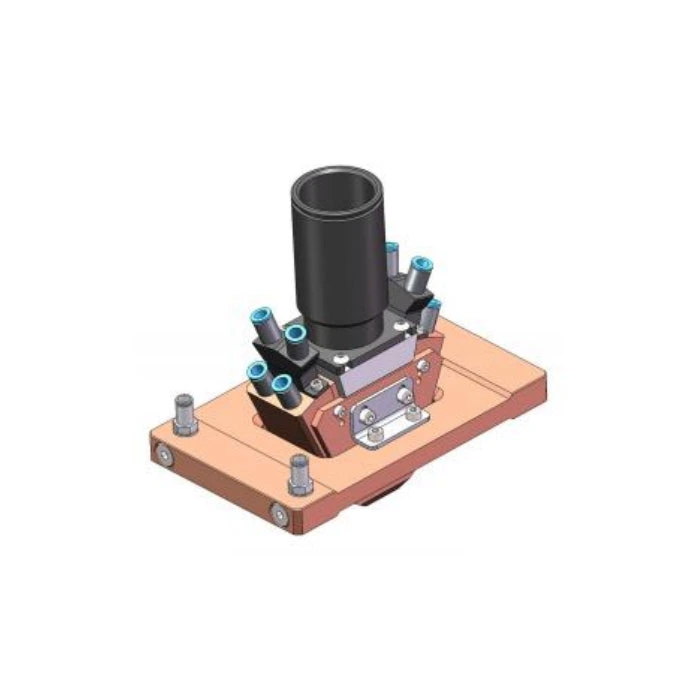

LDRF-TK-20KA-Laser cladding head

product-1-1

The compact product design enables a wide powder delivery width, ensuring flexible operation. With excellent powder convergence and optimized light spot matching, it maximizes nozzle efficiency. The large water inlet/outlet channels and large-area heat exchange design provide superior cooling performance. The simple nozzle structure also simplifies maintenance and upkeep.

model	LDRF-TK-20KA
Applicable Power	≤6000W
Spot length	≤30mm
weight	≈2.8KG

Nozzle Selection

model	LDRF-TK-20KA-16	LDRF-TK-20KA-20	LDRF-TK-20KA-25
Ash height	≈20mm	≈20mm	≈20mm
Spot width	16mm	20mm	25mm
