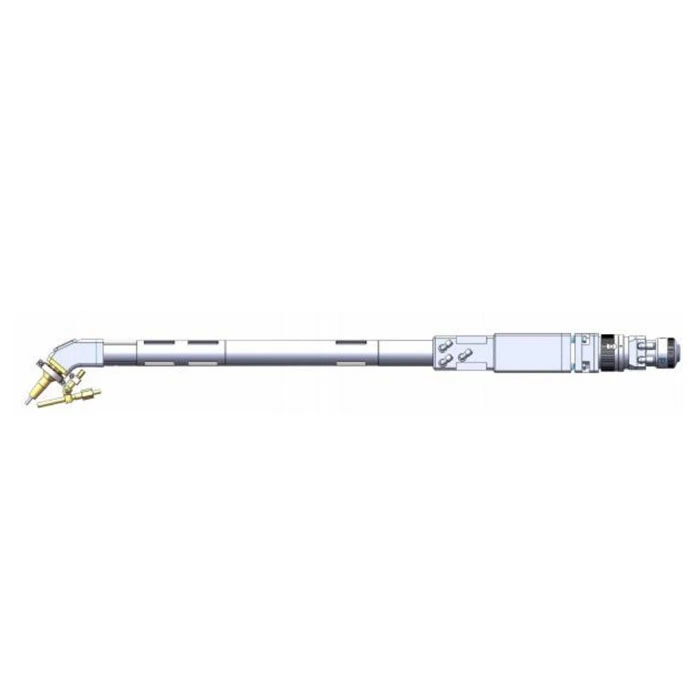

LDIN-D120L600B-Laser cladding head

LDIN-D120L600B-Laser cladding head

The LDIN-D120L600B is a high-power internal wall laser cladding head designed for narrow workpiece surfaces. Featuring integrated water, powder, and gas delivery systems, this compact and user-friendly tool can perform cladding on pipes with diameters as small as 200mm and depths up to 600mm. Its built-in water cooling mechanism and innovative internal cooling structure effectively regulate temperature fluctuations during operation, ensuring stable performance even under high-power processing conditions.

characteristic

• The applicable power range is ≤6KW, and the applicable wavelength range is 1030~ 1090nm

• With built-in water cooling and unique water path optimization design, the temperature of the cladding head is effectively controlled during use, ensuring the stability of the cladding head during use

• Modular product design enables different diameter cladding applications by replacing components

• Capable of internal cladding on pipe fittings with a minimum diameter of 120mm and a single-side depth of 600mm

technical parameter
