LDIN-D120L1000B-Laser cladding head

LDIN-D120L1000B-Laser cladding head

​​​​​​​

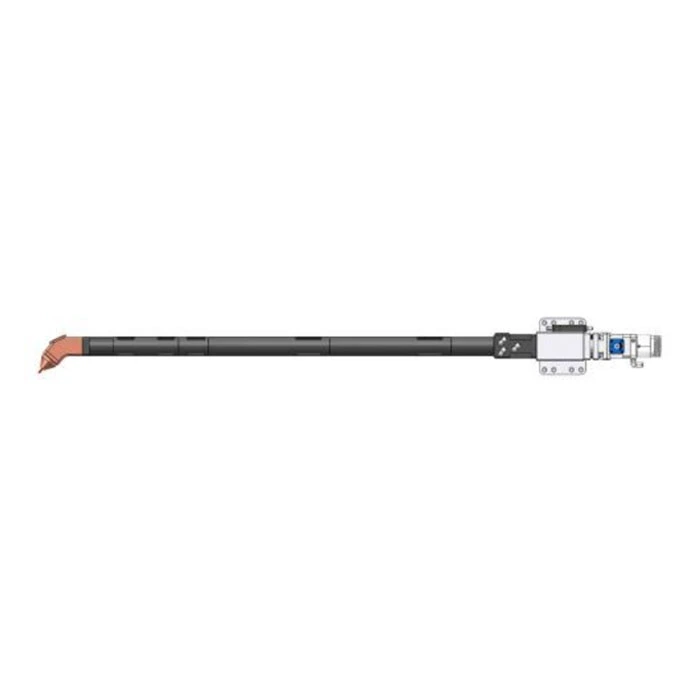

The LDIN-D120L1000B is a high-power internal-walled laser cladding head designed for semiconductor lasers (NA=0.22), specifically engineered for laser cladding on narrow workpiece surfaces. Featuring integrated water, powder, and gas delivery systems, this compact and user-friendly device enables cladding operations on pipes with diameters as small as 120mm and depths up to 1000mm. Its built-in water cooling mechanism and innovative internal cooling structure effectively regulate temperature fluctuations during operation, ensuring optimal performance under high-power conditions.The system can run continuously and stably during operation.

characteristic

• The applicable power range is ≤6KW, and the applicable wavelength range is 900~ 1000nm

• With built-in water cooling and unique water path optimization design, the temperature of the cladding head is effectively controlled during use, ensuring the stability of the cladding head during use

• Modular product design enables different diameter cladding applications by replacing components

• Capable of internal cladding on pipe fittings with a minimum diameter of 120mm and a single-side depth of 1000mm

technical parameter
