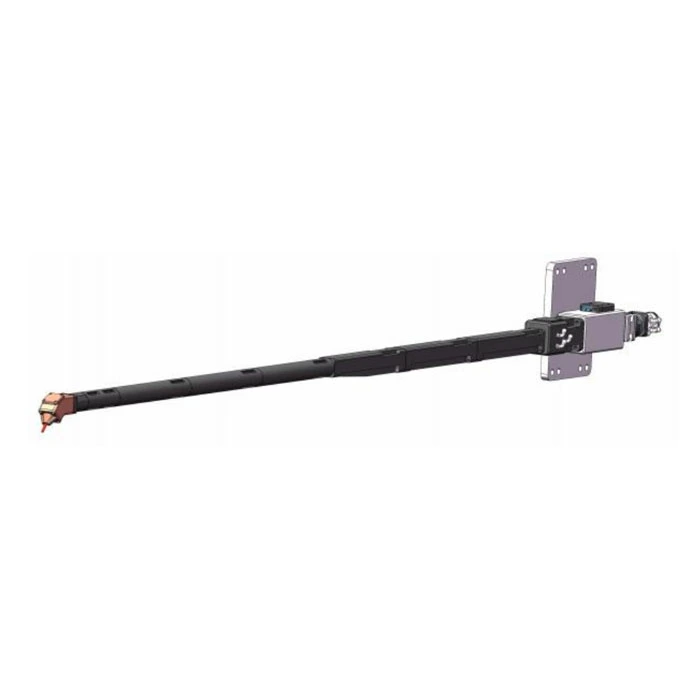

LDIN-D100L2000A-Laser cladding head

LDIN-D100L2000A-Laser cladding head

The LDIN-D100L2000A is a high-power internal wall laser cladding head designed for narrow workpiece surfaces. Featuring integrated water, powder, and gas delivery systems, this compact and user-friendly device enables cladding on pipes with diameters as small as 100mm and depths up to 2200mm. Its built-in water cooling mechanism and innovative internal cooling structure effectively regulate temperature fluctuations during operation.Thus, the cladding head can run continuously and stably during high power machining.

 characteristic

• The applicable power range is ≤6KW, and the applicable wavelength range is 1030~ 1090nm

• With built-in water cooling and unique water path optimization design, the temperature of the cladding head is effectively controlled during use, ensuring the stability of the cladding head during use

• Modular product design enables different diameter cladding applications by replacing components

• Capable of internal cladding on pipe fittings with a minimum diameter of 100mm and a single-side depth of 2200mm

technical parameter
