LDHT500-Laser cladding head

LDHT500-Laser cladding head

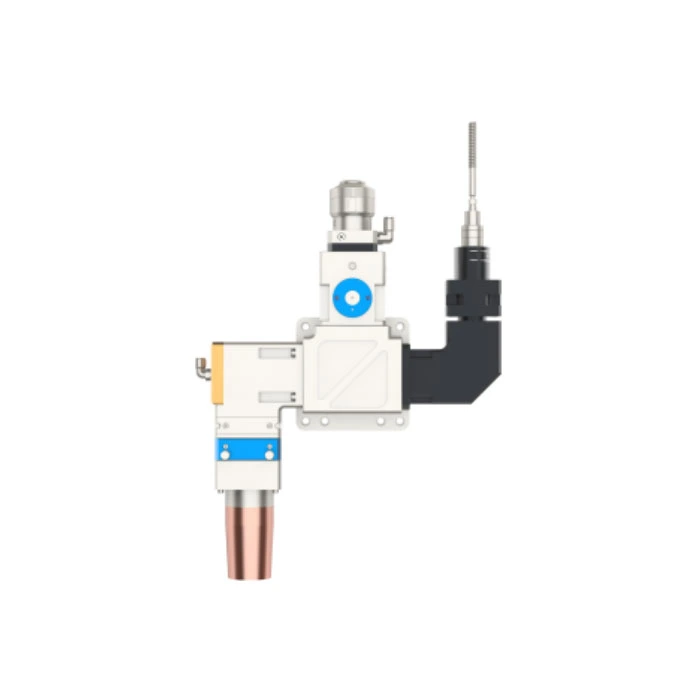

The LDHT500 is a model with The coaxial laser quenching head with closed-loop temperature feedback can monitor and feedback the temperature of the processing point in real time, and adjust the power of the laser through closed-loop feedback, so as to achieve the constant temperature of the processing point.

characteristic

• The applicable power range is ≤6KW, and the applicable wavelength range is 900~ 1100nm

• The direct water cooling of the copper mirror and the unique water path optimization design effectively control the operating temperature of the cladding head, thus ensuring the stability of the cladding head during use

• The product features high modularity, allowing switching between different heating spots by replacing rectangular light spot components

• The multi-lens protection design effectively safeguards the safety of critical components, preventing operational issues caused by improper handling.

• The fiber optic interface is optional and compatible with various laser interface connection methods available on the market

technical parameter
