Cylinder in Hydraulic Support

Product Overview

Composite additive manufacturing technology is applicable for producing new hydraulic support columns and repairing existing ones. The process involves laser additive manufacturing of copper alloy/stainless steel on the inner surface and high-hardness stainless steel on the outer surface, effectively repairing corrosion and wear defects while restoring column dimensions. This method significantly enhances surface wear and corrosion resistance, resulting in a service life three times longer than traditional electroplated columns.

product name

Cylinder in Hydraulic Support

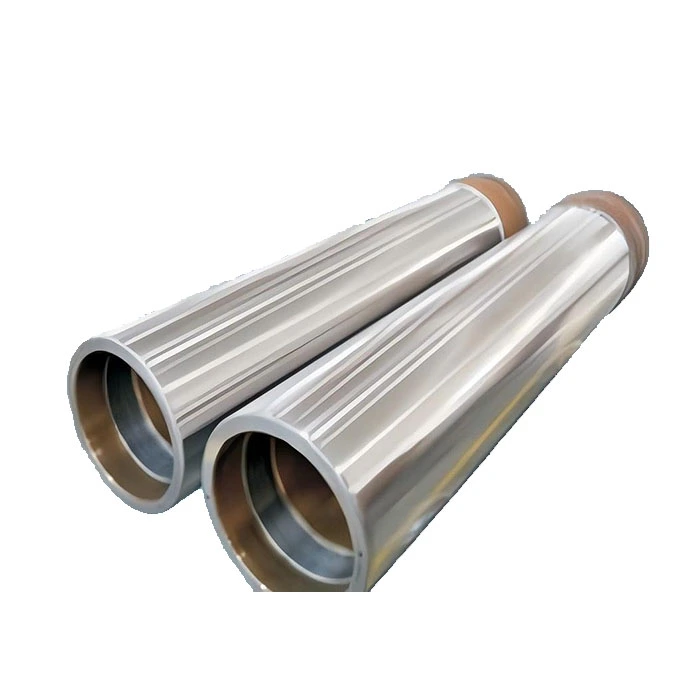

product picture

industry involved

mine

Associated Equipment

hydraulic support

product process

Inner wall: wide light spot laser cladding

Outer wall: laser cladding of wire material

Process materials

Inner wall: stainless steel powder, copper powder

Outer wall: stainless steel wire

product property

Inner wall hardness: HRC28-30, outer wall hardness: HRC48-52,500-hour neutral salt spray test, rating 9
