Integrated portable laser cladding equipment
BX-3000

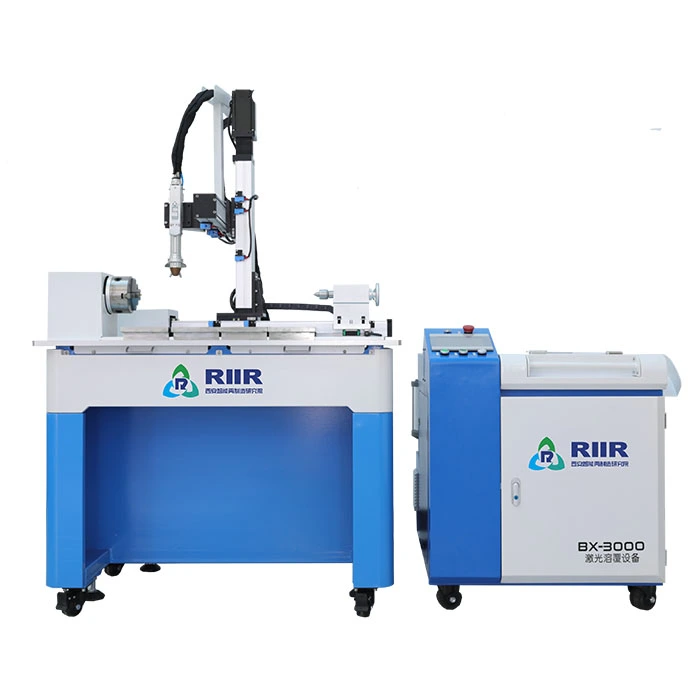

1. product picture
2. product use
The BX-3000 integrated portable laser cladding equipment is suitable for part defect repair, surface coating preparation, on-site maintenance of large workpieces, and temporary repair in the field of mining.
l Component defect repair
l Large workpiece repair
l Field Repair
3. How it works
The BX-3000 integrated portable laser cladding system employs composite additive manufacturing technology based on Directed Energy Deposition (DED). This innovative process utilizes laser beams or other energy sources to melt metal powders, enabling layer-by-layer deposition on substrates for structural reinforcement or 3D component fabrication. The system supports simultaneous material addition and removal, representing an advanced DED additive manufacturing technology that combines multiple processes and integrates diverse material types.
l Process composite: laser and other forms of energy composite to improve efficiency and quality.
l Material composite: Different types of material composite additive can improve the surface properties of parts.
▲ metal dust ▲
4. Product Advantages
l Compact and portable: The integrated design features a lightweight, mobile body with a 2.5kg integrated cladding head, allowing handheld operation.
l Simple operation: the device has built-in parameter algorithm and process package, which can be started and stopped with one click;
l It can be applied to a variety of scenarios: multi-purpose machine, handheld operation, or equipped with lathes, machining centers, robotic arms for automatic cladding;
l Wide range of materials: all kinds of stainless steel, copper alloy, nickel-based alloy, cobalt-based alloy, titanium alloy and other materials can be coated.
5. Product Parameters
formation technology | Synchronous Powder Laser Cladding Technology |
laser cladding head | Multi-function integrated three-beam laser cladding head |
Material Support | Stainless steel, copper alloy, nickel alloy, cobalt alloy, etc. |
high-accuracy feed water system | Repeatability of Constant Flow Disc Air-borne Powder Feeding +2% in charge, with a particle size distribution of 20-200μm for the powder. 0 to 8 rpm |
Device features | Repair parts by hand The Integration of Machining Equipment with Additive and Subtractive Manufacturing Robot and Special Machine Combined Automatic Cladding Processing |
Select accessories | internal hole laser cladding head laser quenching head Variable speed machine or special-purpose machine tool manipulator Other Custom Kits |
Device size | 1000*850*900mm |
weight of equipment | 200KG |
intelligentialize navar | Brand PLC System + 8-inch Touch Screen Control |
applicable workpiece | Molds, gears, shafts, cylinders, casings, blades, etc. |
