- Product Description
Product Introduction
The LAW-20000L9-MIG intelligent laser-arc hybrid welding system is designed for welding medium to thick plates. Equipped with a 6-axis robot (expandable with external linear or rotary axes) and a large-scale motion mechanism, the system offers flexible and adjustable welding ranges. Integrated with a 20 kW fiber laser and a 500 A digital CMT/MIG welder, it enables synergistic welding using dual heat sources—laser and arc—significantly improving welding efficiency, quality, and adaptability. The system supports intelligent features such as laser vision-based seam tracking, digital twin of welding paths, pre-weld path simulation, and closed-loop parameter adjustment. Additionally, it can be equipped with coaxial molten pool online monitoring, providing real-time feedback on penetration depth and defect information during welding. The entire processing workflow enables data collection, analysis, storage, and traceability, allowing fully digitalized management throughout the process.

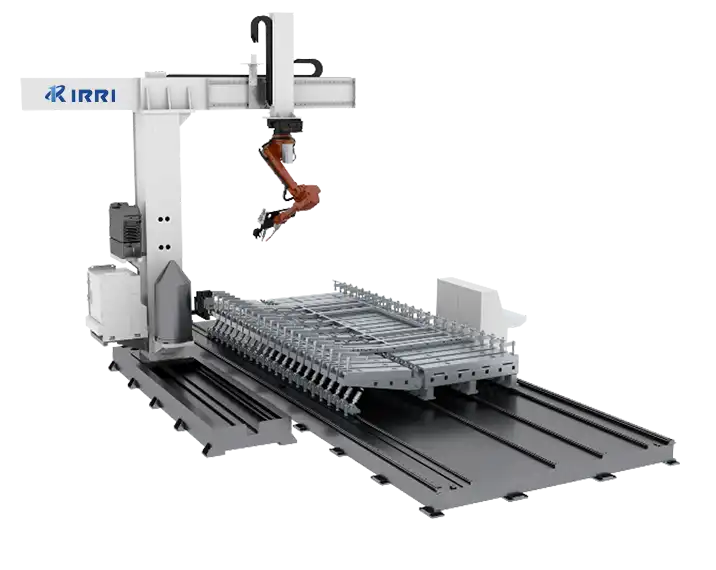

▲ High-power thin plate intelligent laser arc composite welding series robot LAW-L-CMT
Product Advantages
Compact and flexible
●The cantilever structure combined with a 6-axis robot results in a smaller footprint; the cantilever structure is highly flexible and can reach further.
Thick plate without beveling
● 20kW high-power laser + MIG combination: Industry-leading power level, 20mm carbon steel single-pass penetration welding, truly achieving bevel-free welding
Adaptive tracking
● Laser vision adaptive tracking: ±15mm assembly error tolerance, gap tolerance of 0.5~1mm
High strength with low defects
● Laser deep melting with low heat input + OCT online monitoring, Laser-MIG combined thermal regulation + OCT online monitoring, resulting in higher welding joint strength and lower defect rate
Digital Interconnection
● Compatible with mainstream communication protocols (such as ModBus TCP/EtherCat, etc.), complete data collection and remote monitoring throughout the process, seamless integration with the digital factory platform
Core parameters
| Parameter | Specification / Description |
| Equipment Name | High-Power Medium-Thick Plate Laser-Arc Hybrid Welding Robot |
| Equipment Dimensions | Customized According to Customer Product Dimensions |
| Control Accuracy | ±0.05mm |
| Welding Efficiency | 0.8–3m/min |
| Welding Positions | PA / PB / PC |
| Applicable Materials | Carbon Steel, Low-Alloy High-Strength Steel, Stainless Steel, Aluminum Alloy, Copper Alloy, and Other Materials |
| Laser Module Power | ≤20kW |
| Laser-Wire Angle | ±5° |
| Laser-Wire Spacing | Adjustable 0–5mm |
| Welding Process | MIG / MAG / LW / Hybrid Welding (LHW) |
| Welding Power Source | 500A |
| Motion Module | Cantilever Structure 9-Axis Linkage (Customizable) |
| Process Monitoring Module | CCD Coaxial Vision / In-Process OCT Optical Coherence Detection / Seam Tracking Sensor (Positioning + Tracking) (Optional) |
| Cooling Method | Water Cooling |
| Safety Protection | Fence Safety Interlock |
| Dust Removal System | Welding Gun Coaxial Dust Removal System (Explosion-Proof Dust Collector Optional) |
| Operation Panel | 22.5-inch Display Panel + Portable Teach Pendant |
| Working Environment | Ambient Temperature -15℃ to +45℃ |
| Communication System | EtherCAT Communication / Data Acquisition / MES Support (Optional) |
| Control System | PC-Based Architecture (LWH Control System) |
| CAM Software | DYNAHYBRID RU |
| Computer Host | High-Performance Computer |
